Deskripsi
Product Overview
Power Electronic Trainer dirancang sebagai sistem pembelajaran laboratorium yang memungkinkan mahasiswa memahami prinsip kerja dan aplikasi elektronika daya melalui eksperimen praktikum yang sistematis. Trainer ini menyediakan berbagai modul rangkaian yang memungkinkan pengguna mempelajari berbagai teknik konversi daya seperti penyearah, pengendalian tegangan AC, serta kontrol beban listrik menggunakan komponen semikonduktor daya.
Trainer ini dilengkapi dengan berbagai modul eksperimen seperti rangkaian diode, SCR, TRIAC, DIAC, kapasitor, serta potensiometer yang memungkinkan pengguna mempelajari berbagai karakteristik dan aplikasi elektronika daya secara langsung melalui percobaan praktikum.
Dengan desain modular dan koneksi eksperimen yang mudah digunakan, Power Electronic Trainer sangat cocok digunakan untuk praktikum elektronika daya, sistem konversi energi listrik, serta pelatihan sistem kontrol daya pada pendidikan teknik.
Technical Specifications

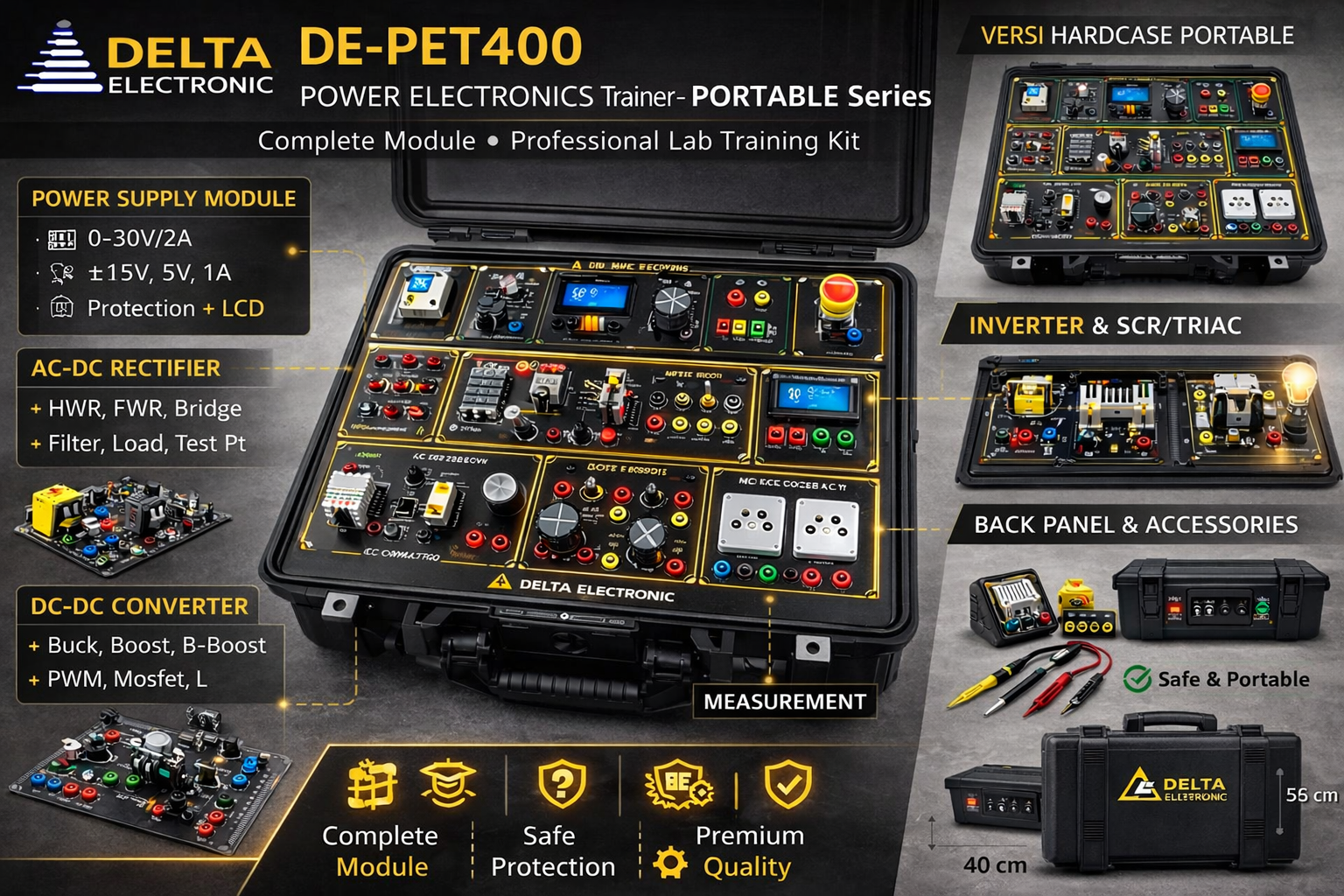

Model : DE-PET400
Series Code : DST-Train-PE02
Manufacturer : Delta Electronic
Country of Origin : Indonesia
Power Supply Module (DEP-PE047-PS)
Supply Voltage : Max 230 VAC 50 Hz
Output Voltage : +15 VDC, +5 VDC, 12 VAC, 18 VAC, 220 VAC
Current Capacity : 3 A
Output Connections : 4 mm safety sockets
Variable Power Supply (DEP-PE047-VS)
Supply Voltage : +15 VDC, −15 VDC
Output Voltage : Variable 0 – 12 VDC
Current : 500 mA
Output Connections : 4 mm safety sockets
Characteristics Experiment Module (DEP-PE047-CH)
Circuit assembly for experiment with :
Resistor
SCR
TRIAC
Capacitor
DIAC
Potentiometer
Diode
SPDT Switch
Conductive connections using 4 mm laboratory safety plug
Power Circuit Experiment Module (DEP-PE047-PC)
Diode rectifier circuit
SCR controlled rectifier circuit
TRIAC AC power control circuit
RC triggering circuit
Load control experiment module
Experiment Interface
4 mm laboratory banana safety connection system
Clearly labeled experiment terminals
Modular experiment configuration
Measurement Module
Integrated frequency monitoring module
Display : OLED graphic display
Used for monitoring triggering signal and experiment frequency during power electronics experiment
Mechanical Construction
Desktop laboratory trainer module
Durable industrial laboratory panel
Clear printed schematic for experiment guidance
Aluminum hardcase laboratory trainer enclosure
Exclusive Features
Integrated frequency monitoring module with OLED display
Modular experiment interface using 4 mm laboratory banana terminal
Industrial grade experiment panel design
Clear printed experiment schematic on trainer panel
Aluminum hardcase laboratory trainer system
Easy maintenance and modular expansion capability
Note:
Model DE-PET400 corresponds to trainer series DST-Train-PE02 as referenced in official support documentation.
