Product Overview

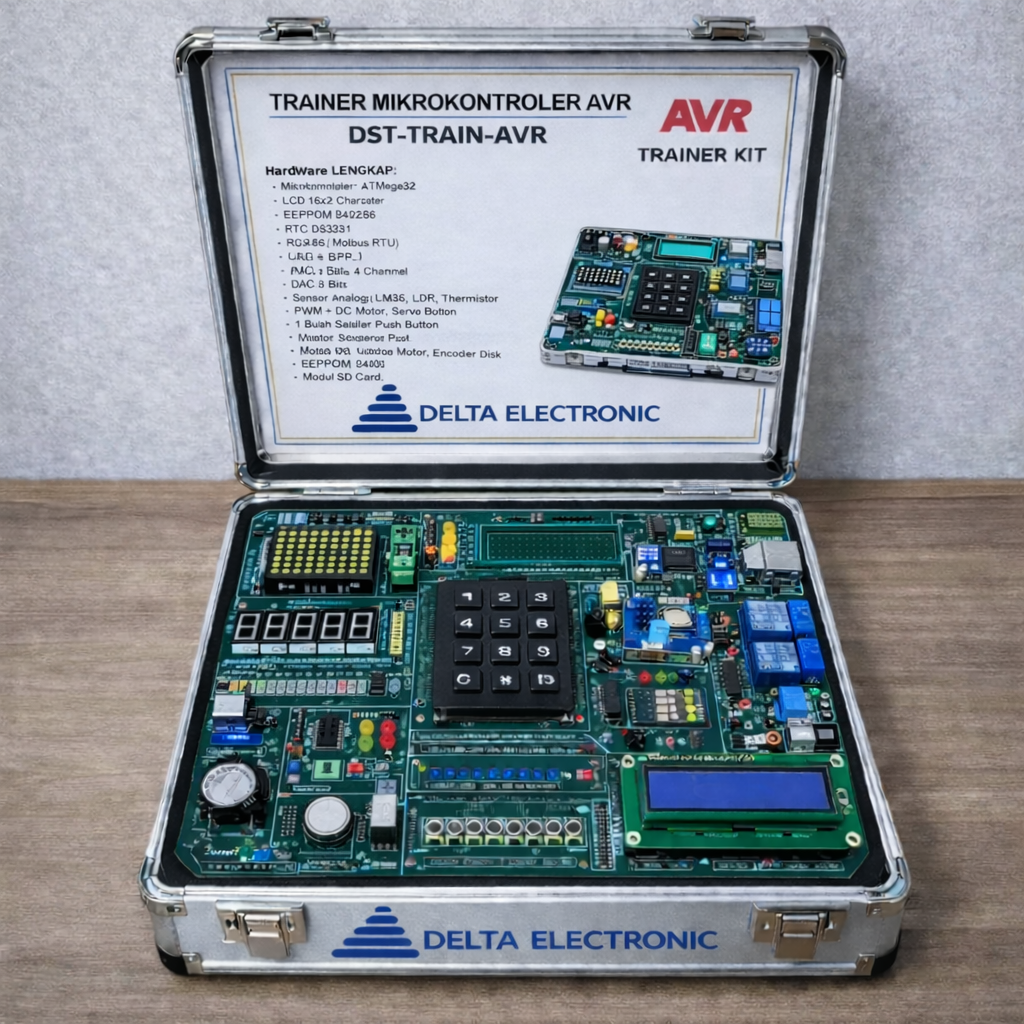

AVR Trainer Kit adalah perangkat pembelajaran mikrokontroler berbasis ATMEGA16 yang dilengkapi berbagai modul eksperimen seperti sensor, display, relay, dan aktuator untuk mendukung praktikum embedded system di laboratorium pendidikan.
Technical Specifications
Model : DST-TRAIN-AVR
Series Code : DST-Train-AVR-02
Manufacturer : Delta Electronic
Microcontroller : AVR ATmega Series
Programming Interface : USB ISP Programmer
Display : LCD 16×2, Seven Segment
Input Module : Push Button, Keypad
Output Module : LED Array, Relay Module
Communication : UART Serial Interface
Microcontroller System
Microcontroller : AVR ATMEGA16
Socket : ZIF 40 Pin
Programming Interface : USB ASP Downloader
Clock System : On board crystal oscillator
Reset : Manual reset push button
Power Supply
Input Voltage : AC 220V 50Hz
Output Voltage : +5V DC, +12V DC, GND
Protection : Short circuit protection
Display Modules
LCD Display 16 x 2
Dot Matrix LED 8 x 8
7 Segment Display 6 Digit 0.56 inch
Input Modules
Keypad 4 x 4 Matrix
8 Push Button Switch
Infrared Receiver with Remote Control
Potentiometer 2 units for ADC experiment
Output Modules
8 LED Indicators
Traffic Light Simulator 4 Way Intersection
Relay Module 5V 4 Channel
Relay Module 5V 8 Channel
Buzzer 5V
Sensor Modules
Temperature Sensor LM35
Ultrasonic Distance Sensor HC SR04
Temperature and Humidity Sensor DHT11
Gas Sensor MQ2
Motor Actuator Modules
Stepper Motor 28BYJ 48 5V
Servo Motor MG90S
DC Motor Module
Communication Modules
GSM Module SIM800L
Bluetooth Module HC05
Additional Modules
Real Time Clock RTC DS1307
ADC Interface Connector
System Interface
Modular connection using 4 mm banana sockets
Experiment wiring using jumper connection cables
Mechanical Construction
Desktop trainer module
Durable laboratory panel construction
Clear printed labeling for each experiment module
Note:
Model DST-Train-AVR corresponds to series code DST-Train-AVR02 as referenced in official support documentation.
